Wood chipper machine

sku:

Large Capacity Wood Chipper Type 1600

large wood chipper machine is a new style and widely applied machine.


It is composed of a machine base, a knife roll, an upper and lower feeding system, a feeding system and a hydraulic buffering system, and is mainly used for crushing materials such
as logs, small-diameter wood, branches, boards, slats, and bamboo.


The crushing material can be used in paper mill, power plant, pellet factory, boiler factory...

Description

Product Paramenters

Model
Powe
(kw)
Capacity
(t/h)
Feeding Hopper Size
(L*W)
For Raw Mateiral
JC 216
55
3-5
545*230
The diameter of wood log should less than 20cm;
JC218
110
8-10
710*360
The diameter of wood log should less than 30cm
JC1300-
160
12-15
1120*500
The diameter of wood log should less than 35cm
JC1600
315
20-30
1100*530
The diameter of wood log should less than 35cm
JC1800
220
15-25
1400*700
Mainly for wood pallets, waste wood building templates
Raw Material and Application
What kind of raw material can be crushed?
The raw materials of wood chipper can be pulpwood, waste wood, and residual wood from agriculture, landscaping, logging, and sawmills. Wood chips can also be produced from remaining forestry materials including tree crowns, branches, unsaleable materials or undersized trees.Usually the finished products of drum wood chipper, wood chips is 3-5 cm
Our Advantages
Strong body of large wood chipper
Strong structure ensure wood chipper run steadily without ground foundation. and the blade material is H13, anti-wearing, prolonging service life, which can cut hard wood.

Large inlet size, applied to a variety of materials. feeding method adopts feeding chain plate(Q345 steel plate material), feeding
material smoothly and evenly.

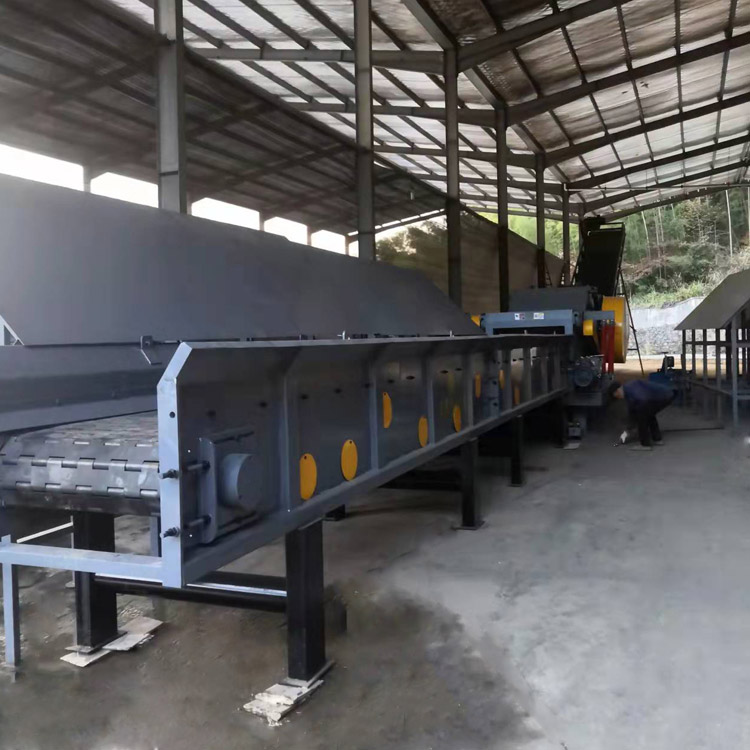

Feeding system---Chain Conveyor
Normally, JC Machinery adopts two Feeding System: feeding blet conveyor or feeding chain conveyor (according to different material)
For large capacity drum wood chipper wood crusher , it usually adopts chain conveyor instead of belt conveyor. Chain Conveyor with long lifetime than belt conveyor.

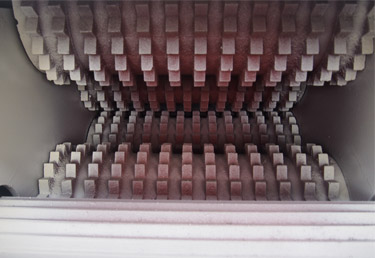

Feed roller of large wood chipper
Feed roller adopts 45# Mn steel, with strong abrasion and precise bite force, the strength and performance higher than welded
parts.

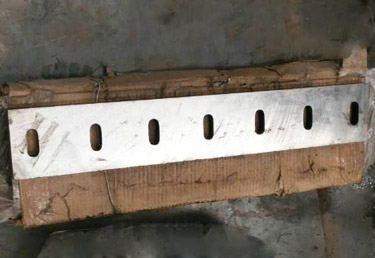

Spare Parts---Rotary Knife
65# manganese steel, anti-wearing, prolonging service life, which can cut hard wood.

Blade thickness 20mm, thin 1mm per grinding. Lifetime:4-6 months

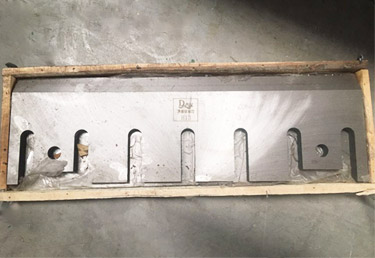

Spare Parts---Fixed Knife
Material: 45# manganese steel Lifetime: around 400-600h
Customer Photos

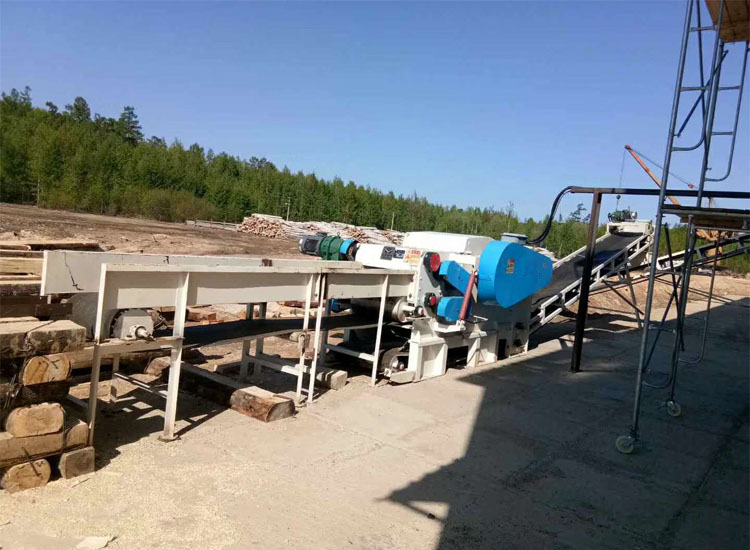

2113 Wood Chipper in S. Korea

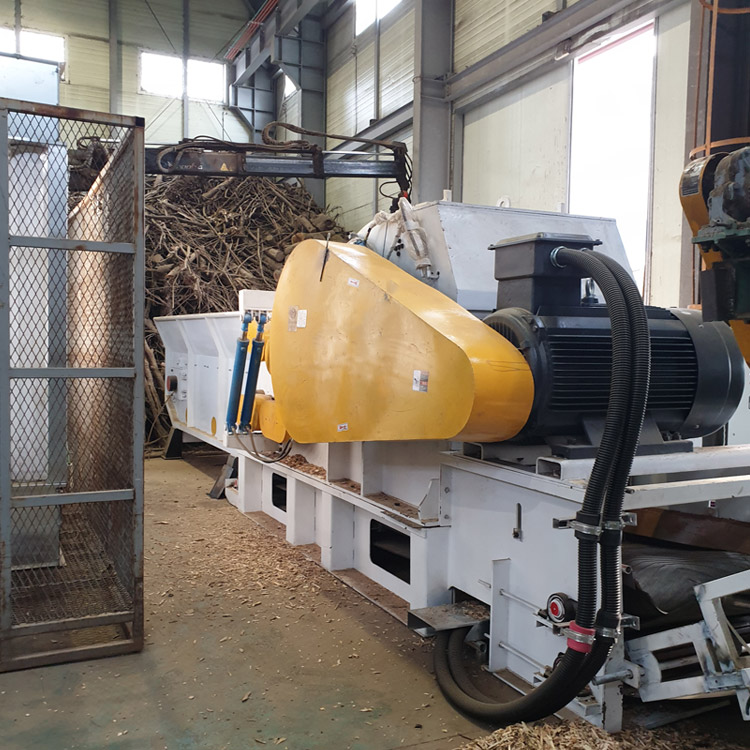

Comprehensive Wood Chipper

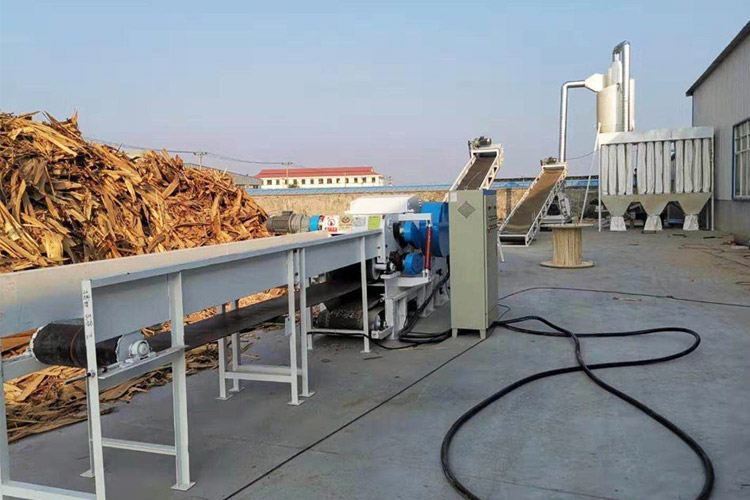

Wood Chipper in Russia

218 Wood Chipper in Thailand

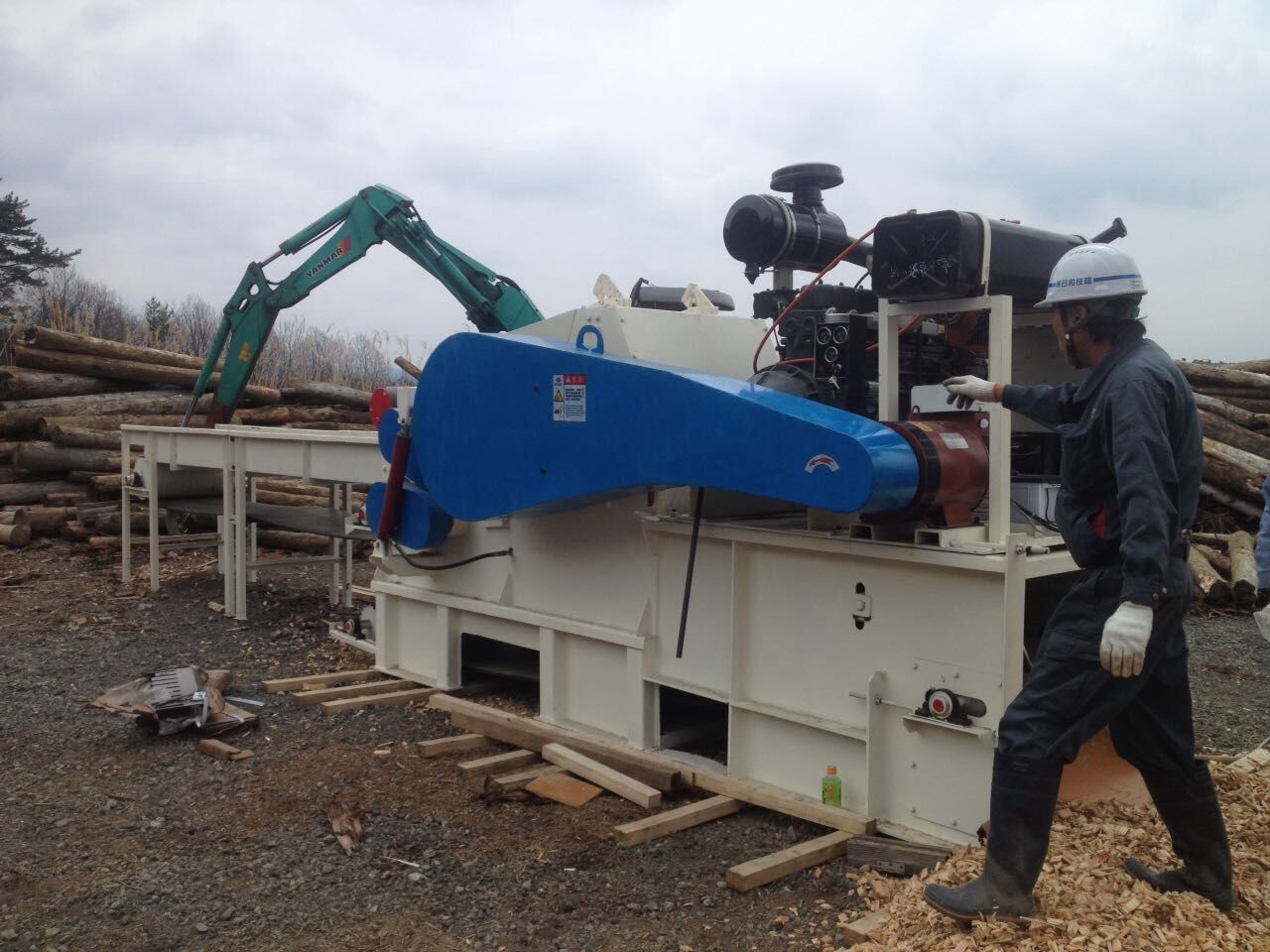

Mobile Diesel Wood Chipper inJapan

Wood Chipper Cases
